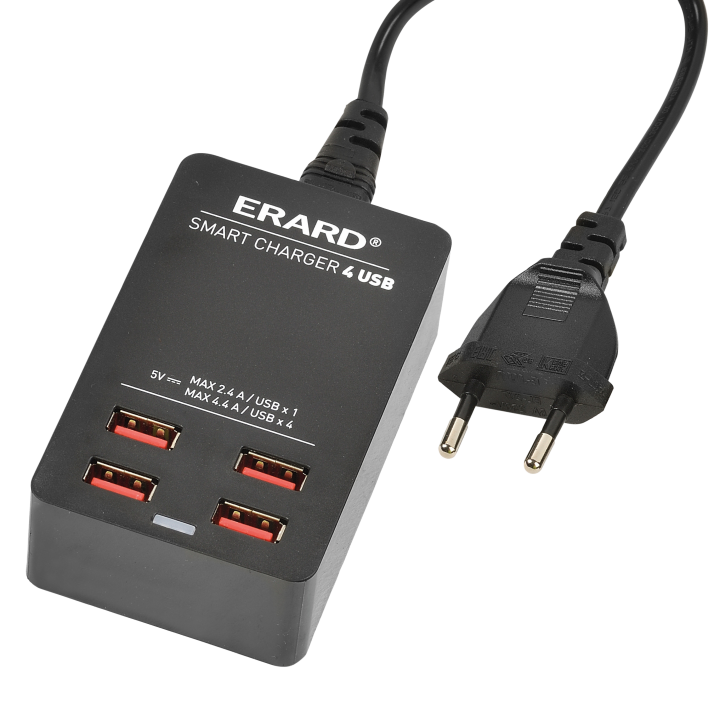

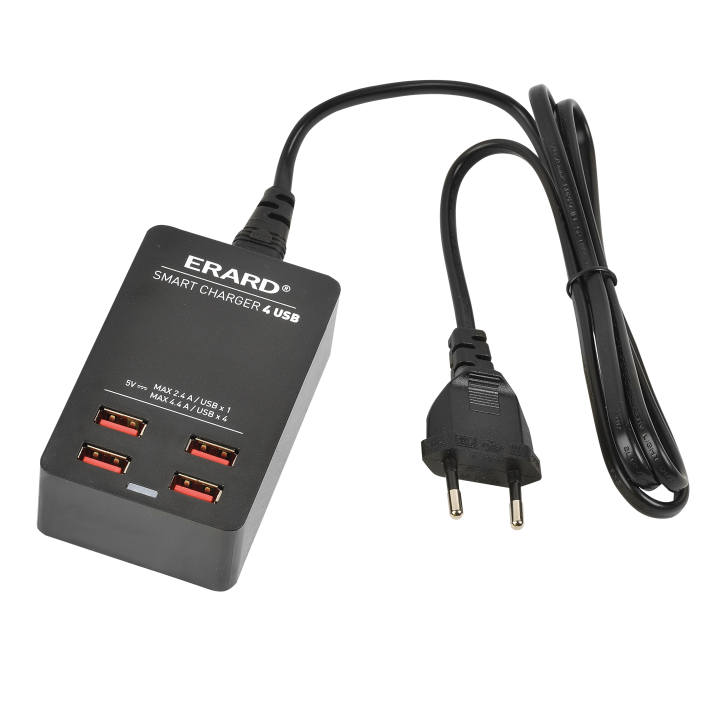

4 x USB A charger

H3 downloadable resources

Technical file

• Product features
• EAN13
  3700117289042
• Technical features
• Erard D3C reference
  SC6005
• Connector A : type
  2 poles
• Connector A : gender
  male
• Connector B : type
  USB A
• Connector B : gender
  female
• Cable length
  1.20 m
• Input voltage
  100 - 240 V
• Colour (Connect)
  Black
• Finish : Connectors
  Nickel-plated connectors
• Certifications
  EMC EN 55024 :2010+A1 :2015
  EMC EN 55032 :2015
  EMC EN 61000-3-2 :2014
  EMC EN 61000-3-3 :2013
  ErP EN 50563+A1 : 2013, EN 50564 : 2011
  LVD EN 60950-1 :2006 +A11 :2009 +A1 : 2010 +A12 : 2011 +A2 : 2013
  ROHS EN 62321-3-1 :2013
  ROHS EN 62321-4 :2013
  ROHS EN 62321-5 :2013
  ROHS EN 62321-6 :2015
  ROHS EN 62321-7-1 :2015
  ROHS EN 62321-7-2 :2017
  ROHS EN 62321-8 :2017
• Dimensions of the housing (LxDxH)
  93 x 58 x 30 mm
• Sheath
  PVC Sheath
• Power supply
  Power block (230V / 6A) supplied
• Product weight
  215.00 g
• Product height
  265.00 mm
• Product width
  95.00 mm
• Product depth
  40.00 mm
• SMART CHARGE
  Yes
• Warranty period
  2 years
• Intensité
  230 V / 6 A
