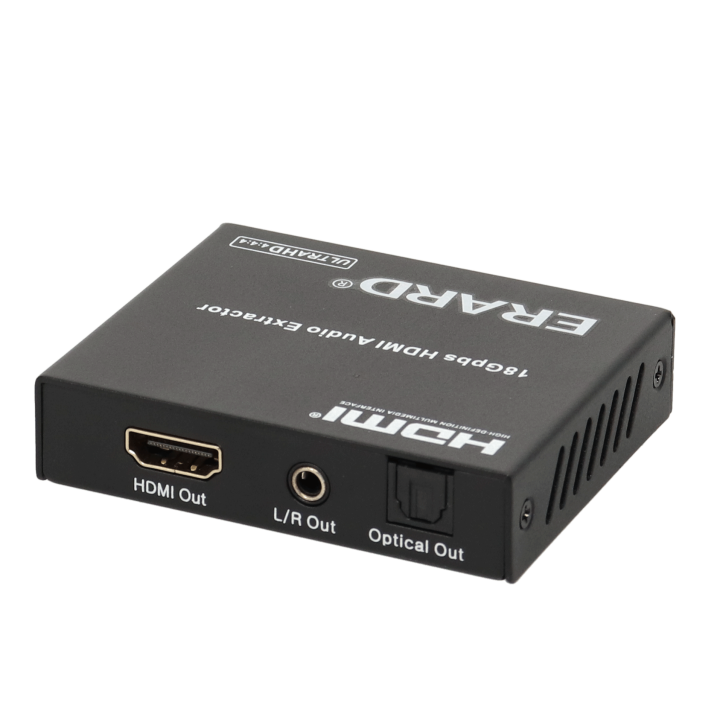

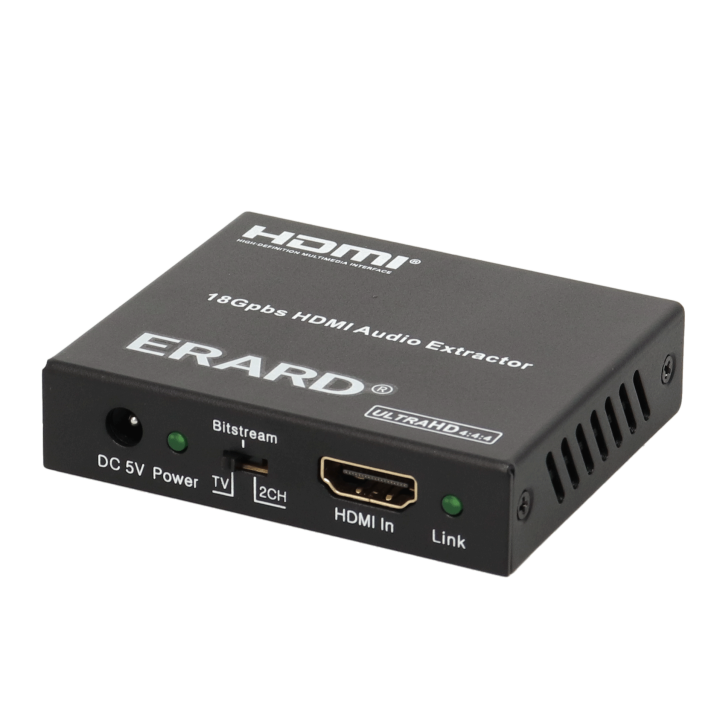

Digital and Analogue Audio Extractor

H3 downloadable resources

Technical file

• Product features
• EAN13
  3700117219117
• Technical features
• Erard D3C reference
  ETCHDMI300
• Plug & Play (PnP)
  Yes
• Data rate
  18 Gbps
• Resolutions (text)
  4K/60Hz : 3840 x 2160 pixels
• Bandwidth
  18 Gbps
• 2.0 compatible
  Yes
• HDR 4:4:4
  Yes
• Colour (Connect)
  Black
• Finish : Connectors
  Nickel-plated connectors
• Certifications
  EMC EN 55024 :2010+A1 :2015
  EMC EN 55032 :2015
  EMC EN 61000-3-2 :2014
  EMC EN 61000-3-3 :2013
  ErP EN 50563+A1 : 2013, EN 50564 : 2011
  LVD EN 60950-1 :2006 +A11 :2009 +A1 : 2010 +A12 : 2011 +A2 : 2013
  ROHS EN 62321-3-1 :2013
  ROHS EN 62321-4 :2013
  ROHS EN 62321-5 :2013
  ROHS EN 62321-6 :2015
  ROHS EN 62321-7-1 :2015
  ROHS EN 62321-7-2 :2017
  ROHS EN 62321-8 :2017
• Dimensions of the housing (LxDxH)
  60 x 74 x 16 mm
• Power supply
  Power supply (5V / 1A) included
• Material of housing
  métal
• Product weight
  450.00 g
• Product height
  170.00 mm
• Product width
  170.00 mm
• Product depth
  60.00 mm
• Weight per housing
  174.00 g
• Resolutions
  FULL HD - 1920x1080p @30 Hz
  HD - 1280x720p @50 Hz
  HD - 1280x720p @60 Hz
  ULTRA HD 4K - 3840x2160p @30 Hz
  ULTRA HD 4K - 3840x2160p @60 Hz
• Warranty period
  2 years
