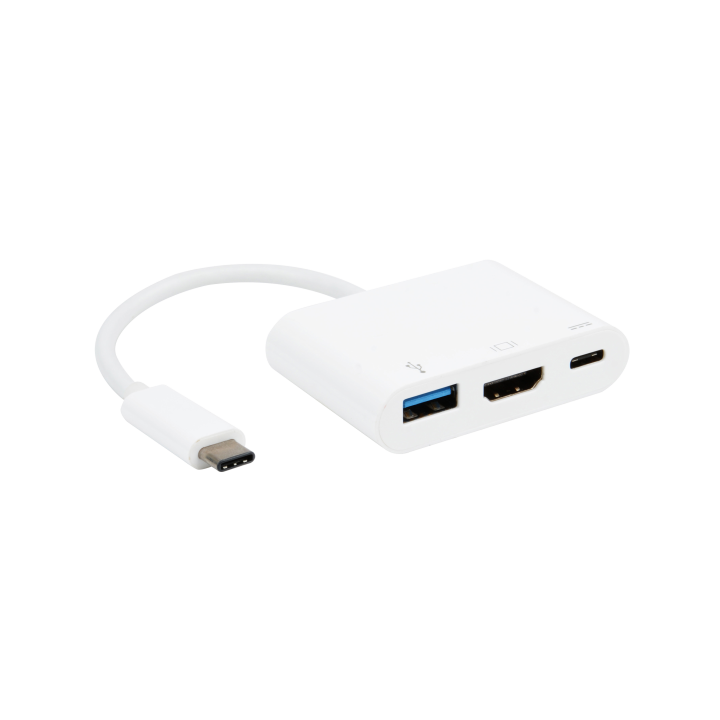

USB C M to USB A + HDMI A + USB C F converter

H3 downloadable resources

Technical file

• Product features
• EAN13
  3700117224814
• Technical features
• Erard D3C reference
  USB321
• Connector A : type
  USB C
• Connector A : gender
  male
• Cable length
  0.15 m
• Plug & Play (PnP)
  Yes
• Data rate
  5 Gbps
• Resolutions (text)
  Full HD 1080p/60Hz : 1920 x 1080 pixels
• Bandwidth
  5 Gbps
• Colour (Connect)
  White
• Finish : Connectors
  Nickel-plated connectors
• Certifications
  EMC EN 55024 :2010+A1 :2015
  EMC EN 55032 :2015
  EMC EN 61000-3-2 :2014
  EMC EN 61000-3-3 :2013
  ROHS EN 62321-3-1 :2013
  ROHS EN 62321-4 :2013
  ROHS EN 62321-5 :2013
  ROHS EN 62321-6 :2015
  ROHS EN 62321-7-1 :2015
  ROHS EN 62321-7-2 :2017
  ROHS EN 62321-8 :2017
• Copper conductors
  Yes
• Dimensions of the housing (LxDxH)
  60 x 40 x 15 mm
• Sheath
  PVC Sheath
• Power supply
  Self-powered
• Automatic synchronization of resolutions
  Yes
• Product weight
  48.00 g
• Product height
  170.00 mm
• Product width
  130.00 mm
• Product depth
  35.00 mm
• Resolutions
  FULL HD - 1920x1080p @60Hz
• Warranty period
  2 years
