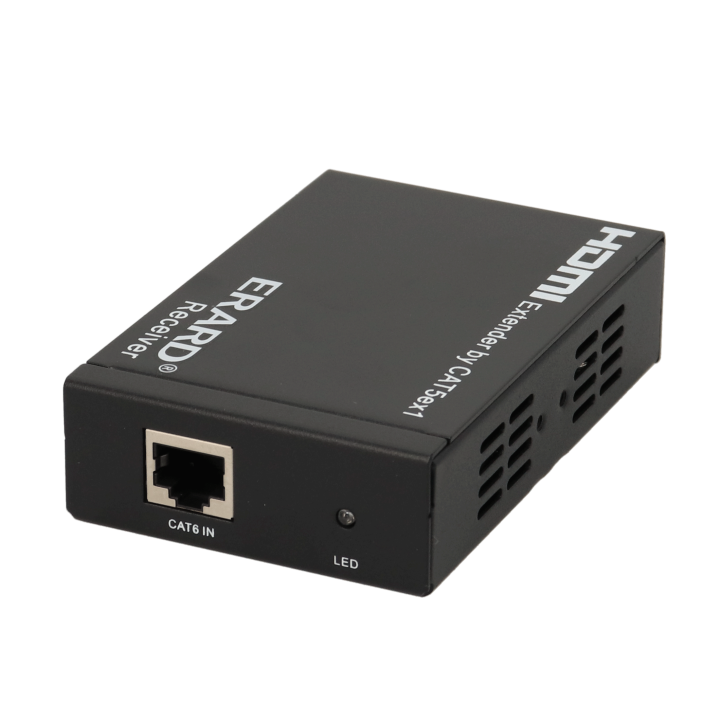

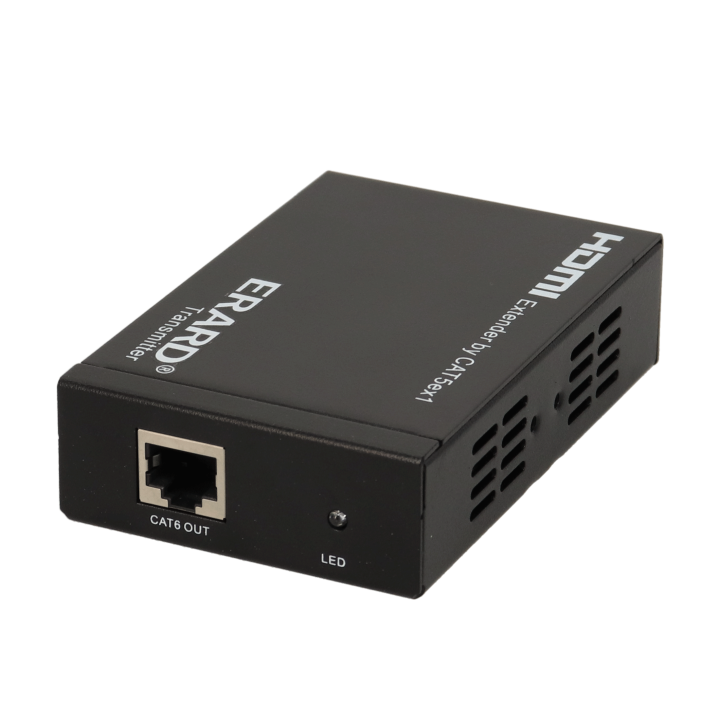

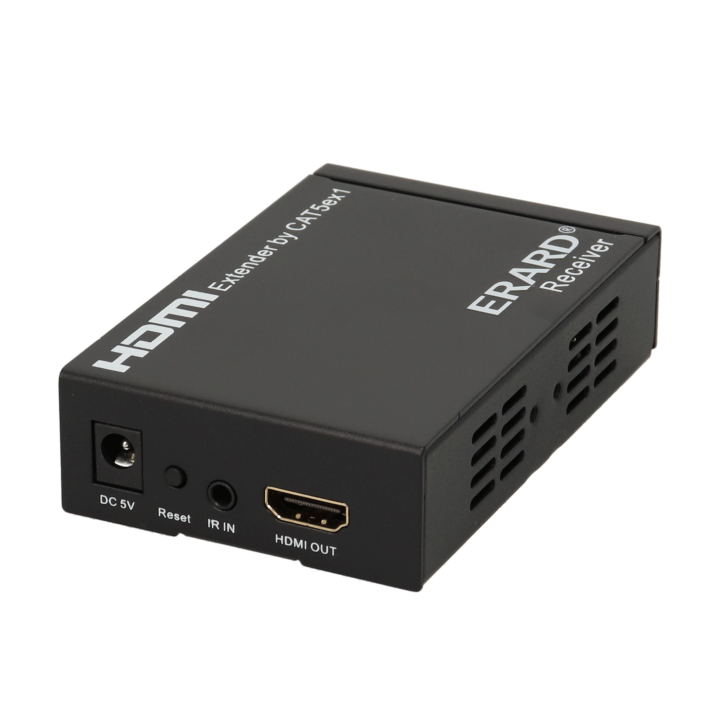

HDMI Extender 1 to 4 over IP - FULL HD

Technical file

• Product features
• EAN13
  3700117279340
• Technical features
• Erard D3C reference
  EXTHDMI804T
• Plug & Play (PnP)
  Yes
• Resolutions (text)
  Full HD 1080p/60Hz : 1920 x 1080 pixels
• Bandwidth
  7.2 Gbps
• Maximum signal transmission distance
  80 m point à point
• Colour (Connect)
  Black
• Finish : Connectors
  Nickel-plated connectors
• Certifications
  EMC EN 55024 :2010+A1 :2015
  EMC EN 55032 :2015
  EMC EN 61000-3-2 :2014
  EMC EN 61000-3-3 :2013
  ErP EN 50563+A1 : 2013, EN 50564 : 2011
  LVD EN 60950-1 :2006 +A11 :2009 +A1 : 2010 +A12 : 2011 +A2 : 2013
  ROHS EN 62321-3-1 :2013
  ROHS EN 62321-4 :2013
  ROHS EN 62321-5 :2013
  ROHS EN 62321-6 :2015
  ROHS EN 62321-7-1 :2015
  ROHS EN 62321-7-2 :2017
  ROHS EN 62321-8 :2017
• Transmitter dimensions (LxDxH)
  100 x 65 x 28 mm
• Receiver dimensions (LxDxH)
  100 x 65 x 28 mm
• Dimensions of the housing (LxDxH)
  100 x 65 x 28 mm
• Power supply transmitter
  alimentation DC 5V (fournie)
• Power supply receiver
  alimentation (5 V /1 A) fournie
• Power supply
  2 alimentations (5 V / 1 A) fournies
• Automatic synchronization of resolutions
  Yes
• Remote to remote control function
  Yes
• Associated cables
  2387
• TCP/IP Network Compatible
  Yes
• Material of housing
  métal
• Product weight
  5200.00 g
• Product height
  394.00 mm
• Product depth
  145.00 mm
• Transmitter weight
  263.00 g
• Receiver weight
  272.00 g
• Resolutions
  FULL HD - 1920x1080p @60Hz
• Warranty period
  2 years
