KVM 2 to 1 Switcher - DP 1.4 - 8K

H3 downloadable resources

Technical file

• Product features
• EAN13
  3700117229703
• Technical features
• Erard D3C reference
  EXTHDMI120KVM
• Plug & Play (PnP)
  Yes
• Resolutions (text)
  Full HD 1080p/60Hz : 1920 x 1080 pixels
• Bandwidth
  7.2 Gbps
• Maximum signal transmission distance
  120 m point à point
• Colour (Connect)
  Black
• Finish : Connectors
  Nickel-plated connectors
• Certifications
  EMC EN 55024 :2010+A1 :2015
  EMC EN 55032 :2015
  EMC EN 61000-3-2 :2014
  EMC EN 61000-3-3 :2013
  ErP EN 50563+A1 : 2013, EN 50564 : 2011
  LVD EN 60950-1 :2006 +A11 :2009 +A1 : 2010 +A12 : 2011 +A2 : 2013
  ROHS EN 62321-3-1 :2013
  ROHS EN 62321-4 :2013
  ROHS EN 62321-5 :2013
  ROHS EN 62321-6 :2015
  ROHS EN 62321-7-1 :2015
  ROHS EN 62321-7-2 :2017
  ROHS EN 62321-8 :2017
• Transmitter dimensions (LxDxH)
  170 x 93 x 30 mm

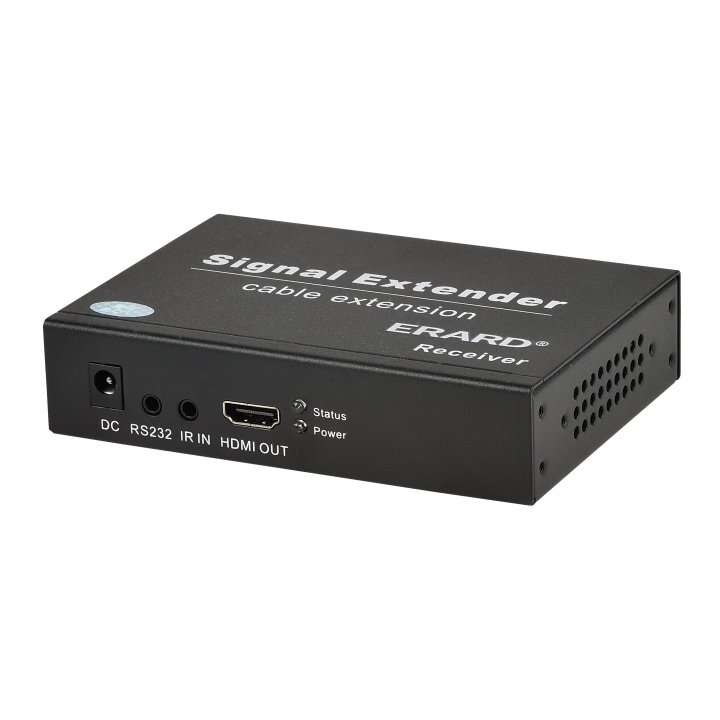

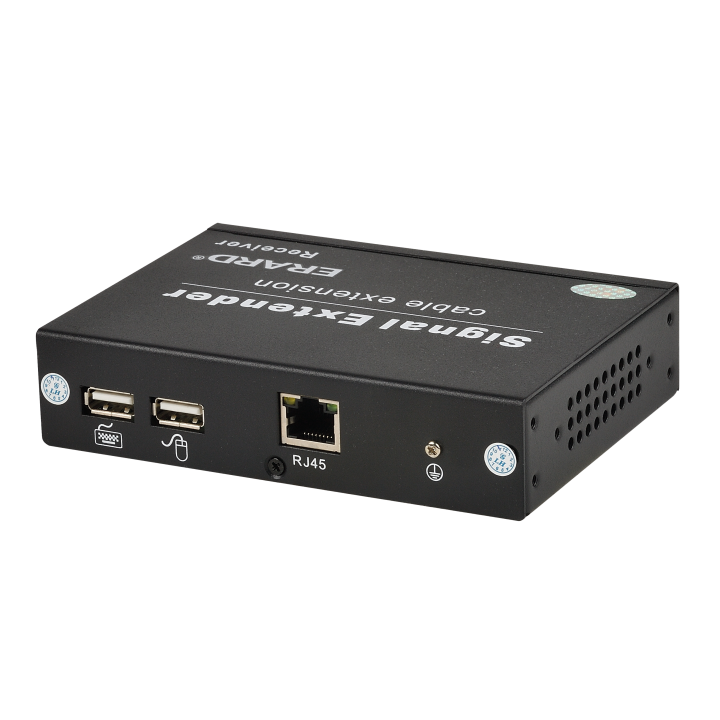

• Receiver dimensions (LxDxH)
  170 x 93 x 30 mm
• Dimensions of the housing (LxDxH)
  170 x 93 x 30 mm
• Power supply transmitter
  alimentation (9 V / 2 A) fournie
• Power supply receiver
  alimentation (9 V / 2 A) fournie
• Power supply
  2 x power supplies (9V / 2A) included
• Automatic synchronization of resolutions
  Yes
• Remote to remote control function
  Yes
• Material of housing
  métal
• Product weight
  1320.00 g
• Product height
  280.00 mm
• Product depth
  70.00 mm
• Transmitter weight
  450.00 g
• Receiver weight
  450.00 g
• Resolutions
  720x480i @60 Hz
  720x480p @60 Hz
  720x576i @50 Hz
  1920x1080i @50 Hz
  1920x1080i @60 Hz
  FULL HD - 1920x1080p @50 Hz
  FULL HD - 1920x1080p @60Hz
  HD - 1280x720p @50 Hz
  HD - 1280x720p @60 Hz
  SD - 720x576p @50 Hz
• Warranty period
  2 years
