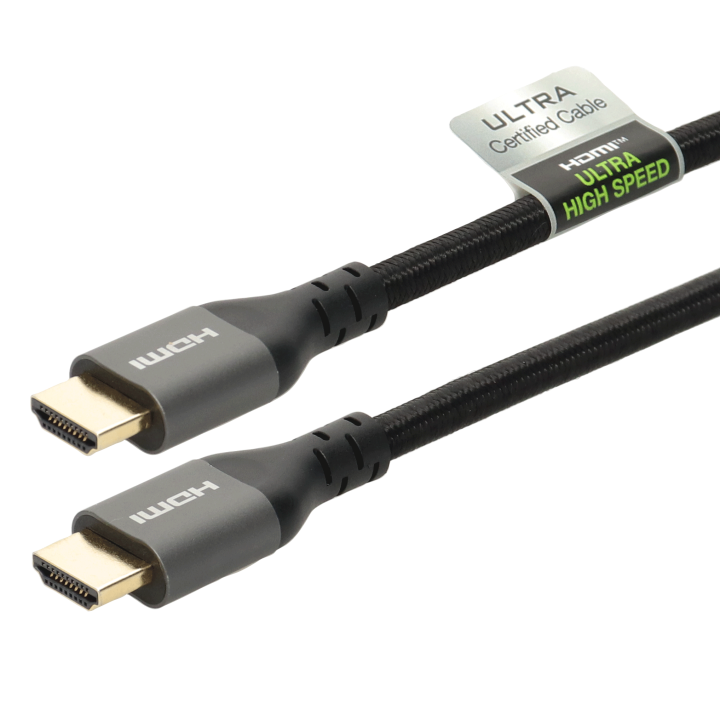

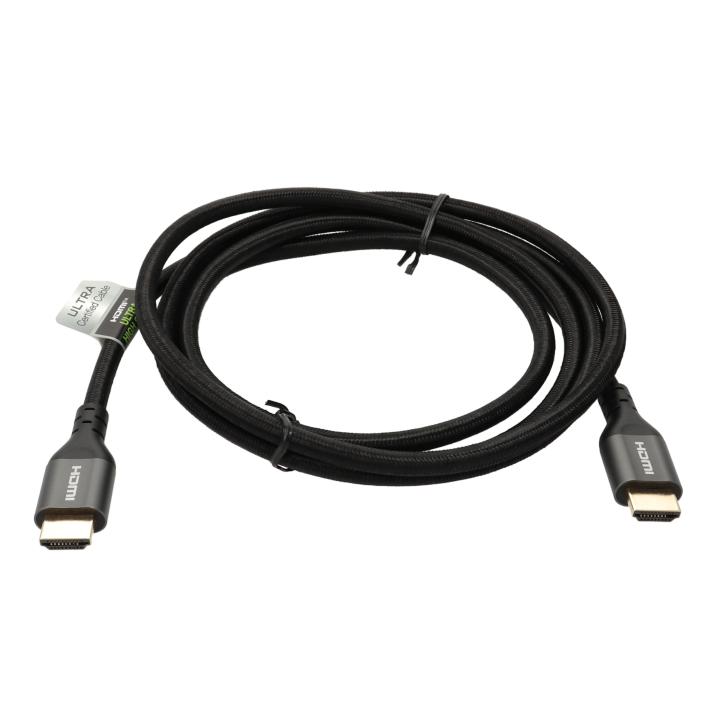

8K HDMI A cable 2.1 certified cable

H3 downloadable resources

Technical file

• Product features
• EAN13
  3700117268603
• Technical features
• Erard D3C reference
  VDMI119S21/2
• Connector A : type
  HDMI A
• Connector A : gender
  male
• Connector B : type
  HDMI A
• Connector B : gender
  male
• Cable length
  2.00 m
• Plug dimensions
  55 x 20 x 9 mm
• Resolutions (text)
  8K/60Hz : 7680 x 4320 pixels
• Bandwidth
  48 Gbps
• HDR 4:4:4
  Yes
• ARC (Audio Return Channel)
  Yes
• Colour (Connect)
  Black
• Finish : Connectors
  Gold-plated connectors - aluminium plugs, titanium finish
• Certifications
  ROHS EN 62321-3-1 :2013
  ROHS EN 62321-4 :2013
  ROHS EN 62321-5 :2013
  ROHS EN 62321-6 :2015
  ROHS EN 62321-7-1 :2015
  ROHS EN 62321-7-2 :2017
  ROHS EN 62321-8 :2017
• Copper type
  OFC
• Sheath
  PVC Sheath
• Product height
  265.00 mm
• Product width
  95.00 mm
• Product depth
  40.00 mm
• Resolutions
  1920x1080i @30 Hz
  1920x1080i @60 Hz
  FULL HD - 1920x1080p @30 Hz
  FULL HD - 1920x1080p @60Hz
  FULL HD - 1920x1080p @120 Hz
  HD - 1280x720p @60 Hz
  SD - 720x576p @50 Hz
  ULTRA HD 4K - 3840x2160p @24 Hz
  ULTRA HD 4K - 3840x2160p @30 Hz
  ULTRA HD 4K - 3840x2160p @60 Hz
  ULTRA HD 4K - 3840x2160p @120 Hz
  ULTRA HD 8K - 7680x4320@60 Hz
• Warranty period
  Lifetime
• Connector A plug dimensions
  55 x 20 x 9
