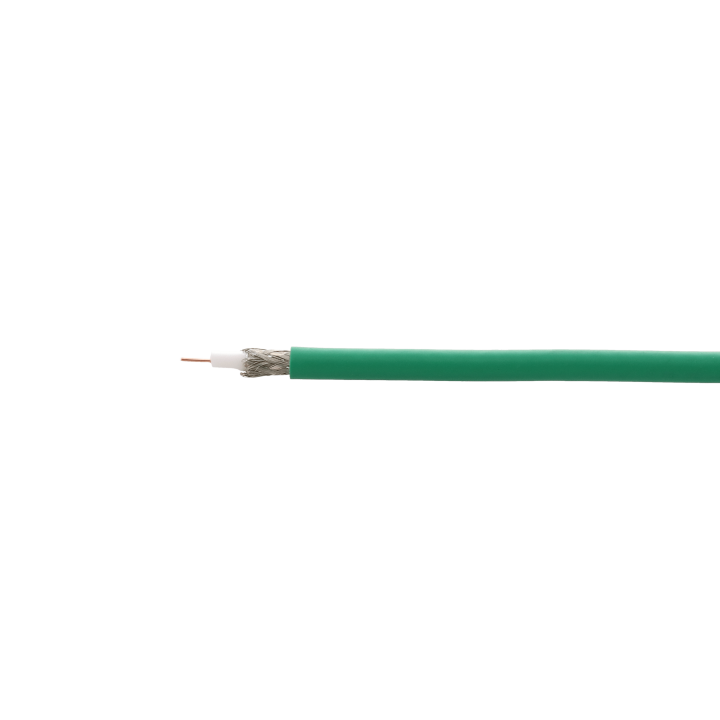

HD-SDI Digital video cable Ø4.5mm
Ref. 726603*
Descriptif HD-SDI Digital video cable Ø4.5mm
• Composition :
Core : single-strand red copper – Ø 0.6mm
Insulation : PE Foam
Shielding 1 : Double aluminium tape - PET
Shielding 2 : Braided tin-plated copper - 91%
Exterior sheath : Green PVC Ø 4.5mm
• Electrical characteristics :
Impedance : 75 Ω
Conductor resistance : 62 Ω / km
Capacity : 56 pF/m
Ground braid resistance : 12.8 Ω / km
• Application : Video surveillance
H3 downloadable resources
Technical file
- Product features
-
EAN133700117266036
Descriptif
HD-SDI Digital video cable Ø4.5mm
• Composition :
Core : single-strand red copper – Ø 0.6mm
Insulation : PE Foam
Shielding 1 : Double aluminium tape - PET
Shielding 2 : Braided tin-plated copper - 91%
Exterior sheath : Green PVC Ø 4.5mm
• Electrical characteristics :
Impedance : 75 Ω
Conductor resistance : 62 Ω / km
Capacity : 56 pF/m
Ground braid resistance : 12.8 Ω / km
• Application : Video surveillance
Technical file
- Product features
-
EAN133700117266036
