Ceiling mount for video projector
Ref. 002431
Ceiling mount for video projector
Ref. 002431

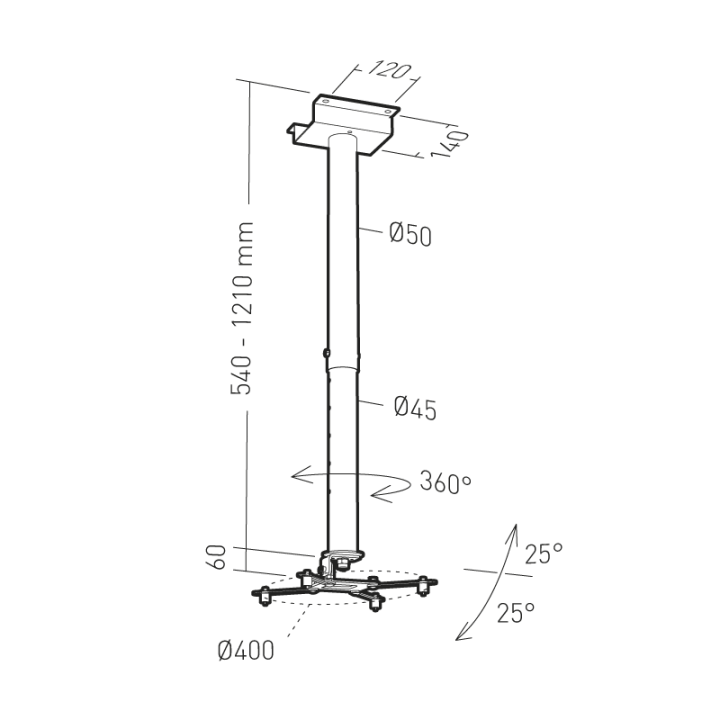

Ceiling mount for video projectors, with height adjustable pole from 54 to 121 cm, 360° swivel, and a maximum supported weight of 15kgs
Ceiling mount for video projectors, with height adjustable pole from 54 to 121 cm, 360° swivel, and a maximum supported weight of 15kgs
Descriptif Ceiling mount for video projector
• Suitable for video projectors to be fixed to the ceiling in an inverted position.
• Image axis can be aligned with the mounting axis.
• Continuously adjustable horizontality and tilt with optional locking.
• Continuously adjustable swivel with optional locking using a pressure screw.
• Hardware and mounting spacers provided.
Downloadable resources
Technical file
- Product features
-
EAN133185280024315
- Technical features
-
Rangesquare
-
Peripheral weight max (kg)15.00 kg
-
Tilt+/-25°
-
Swivel+/-180°
-
MaterialsSteel
-
ColourSilver
-
FinishEpoxy paint
-
Pre-assembled productYes
-
Assembly time30 minutes
-
Person(s) for assembly1 person
-
Distance to ceiling max (unit)1210.00 mm
-
Product weight5250.00 g
-
Product height967.00 mm
-
Product width173.00 mm
-
Product depth66.00 mm
-
Warranty period10 years
Descriptif
Ceiling mount for video projector
• Suitable for video projectors to be fixed to the ceiling in an inverted position.
• Image axis can be aligned with the mounting axis.
• Continuously adjustable horizontality and tilt with optional locking.
• Continuously adjustable swivel with optional locking using a pressure screw.
• Hardware and mounting spacers provided.
Technical file
- Product features
-
EAN133185280024315
- Technical features
-
Rangesquare
-
Peripheral weight max (kg)15.00 kg
-
Tilt+/-25°
-
Swivel+/-180°
-
MaterialsSteel
-
ColourSilver
-
FinishEpoxy paint
-
Pre-assembled productYes
-
Assembly time30 minutes
-
Person(s) for assembly1 person
-
Distance to ceiling max (unit)1210.00 mm
-
Product weight5250.00 g
-
Product height967.00 mm
-
Product width173.00 mm
-
Product depth66.00 mm
-
Warranty period10 years
