CLIFF400TW90 Tilt and swivel wall mount

Ref. 043440
  • [img_ambiance_01]
  • Packshot 01
  • Packshot 02
  • [schema_1]

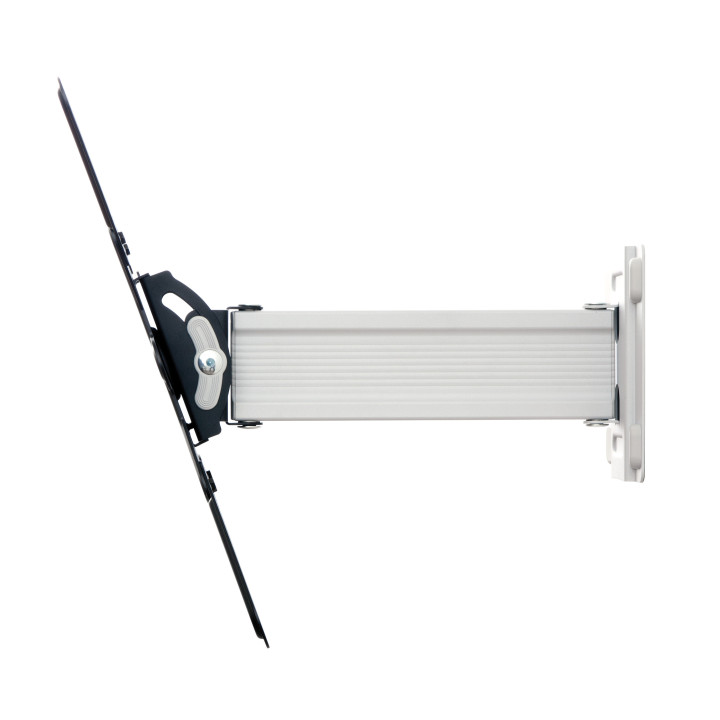

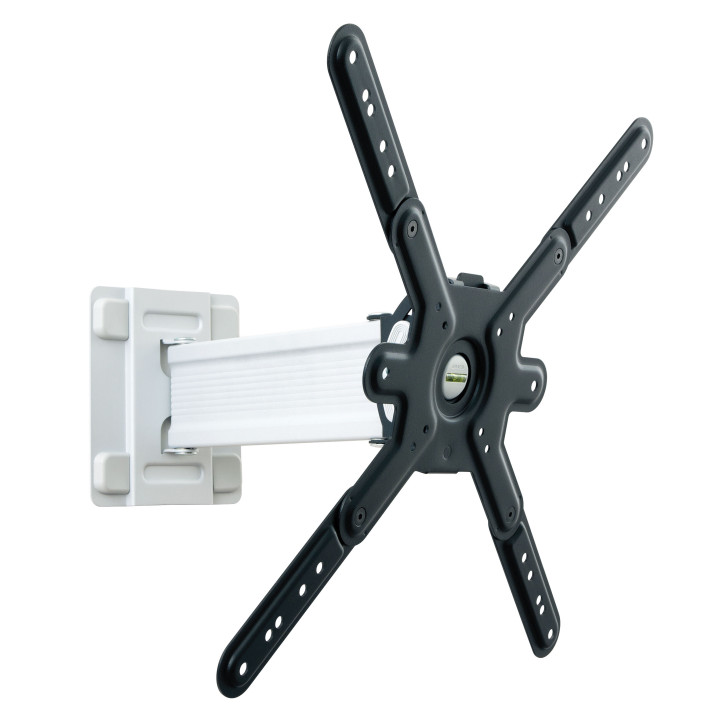

CLIFF400TW90 Tilt and swivel wall mount

Ref. 043440

Tilt and swivel wall mount for screens from 30’’-65’’, VESA 75 to 400x400. Maximum weight supported : 30 kg. Tilt of +5°/-20°, a +/-90° swivel and an offset of up to 365mm

Tilt and swivel wall mount for screens from 30’’-65’’, VESA 75 to 400x400. Maximum weight supported : 30 kg. Tilt of +5°/-20°, a +/-90° swivel and an offset of up to 365mm

En savoir plus

In Stock

Descriptif CLIFF400TW90 Tilt and swivel wall mount

Since being launched, CLIFF mounts have been a hit with consumers and installers. The rounded screen plate, the grooved arms, the built-in spirit level and the choice of colours, really make this range stand out from the crowd.



• Wall mount and mounting plate made of steel.

• Black and silver epoxy paint finish.

• Integrated spirit level.

Technical file

  • Product features
  • EAN13
    3185280434404
  • Technical features
  • Range
    Cliff
  • VESA compatible
    75x75
    100x100
    200x100
    200x200
    200x300
    200x400
    300x200
    300x300
    400x200
    400x400
  • Supported screen size (inches)
    30''-65''
  • Screen back compatible
    flat back
  • Wall type
    Solid wall
  • Screen type
    LCD
    OLED
  • Screen size min (cm)
    76.00 cm
  • Screen size max (cm)
    165.00 cm
  • Screen weight max (kg)
    30.00 kg
  • Function (mount)
    Tilt & swivel
  • Compatible OLED
    Yes if the back of the screen is flat
  • Screen thickness max (unit)
    No
  • Tilt
    +5/-20°
  • Swivel
    +/-90°
  • Distance to wall max (mm)
    365.00 mm
  • Distance to wall min (mm)
    80.00 mm
  • Colour
    Grey
  • Finish
    Epoxy paint
  • Screw set for wall included
    For full wall material
  • Spirit level
    Integrated
  • Pre-assembled product
    Yes
  • Security system preventing falls
    Yes
  • Assembly time
    20 minutes
  • Product weight
    3300.00 g
  • Product height
    75.00 mm
  • Product depth
    320.00 mm

Descriptif CLIFF400TW90 Tilt and swivel wall mount

Since being launched, CLIFF mounts have been a hit with consumers and installers. The rounded screen plate, the grooved arms, the built-in spirit level and the choice of colours, really make this range stand out from the crowd.



• Wall mount and mounting plate made of steel.

• Black and silver epoxy paint finish.

• Integrated spirit level.

Technical file

  • Product features
  • EAN13
    3185280434404
  • Technical features
  • Range
    Cliff
  • VESA compatible
    75x75
    100x100
    200x100
    200x200
    200x300
    200x400
    300x200
    300x300
    400x200
    400x400
  • Supported screen size (inches)
    30''-65''
  • Screen back compatible
    flat back
  • Wall type
    Solid wall
  • Screen type
    LCD
    OLED
  • Screen size min (cm)
    76.00 cm
  • Screen size max (cm)
    165.00 cm
  • Screen weight max (kg)
    30.00 kg
  • Function (mount)
    Tilt & swivel
  • Compatible OLED
    Yes if the back of the screen is flat
  • Screen thickness max (unit)
    No
  • Tilt
    +5/-20°
  • Swivel
    +/-90°
  • Distance to wall max (mm)
    365.00 mm
  • Distance to wall min (mm)
    80.00 mm
  • Colour
    Grey
  • Finish
    Epoxy paint
  • Screw set for wall included
    For full wall material
  • Spirit level
    Integrated
  • Pre-assembled product
    Yes
  • Security system preventing falls
    Yes
  • Assembly time
    20 minutes
  • Product weight
    3300.00 g
  • Product height
    75.00 mm
  • Product depth
    320.00 mm
