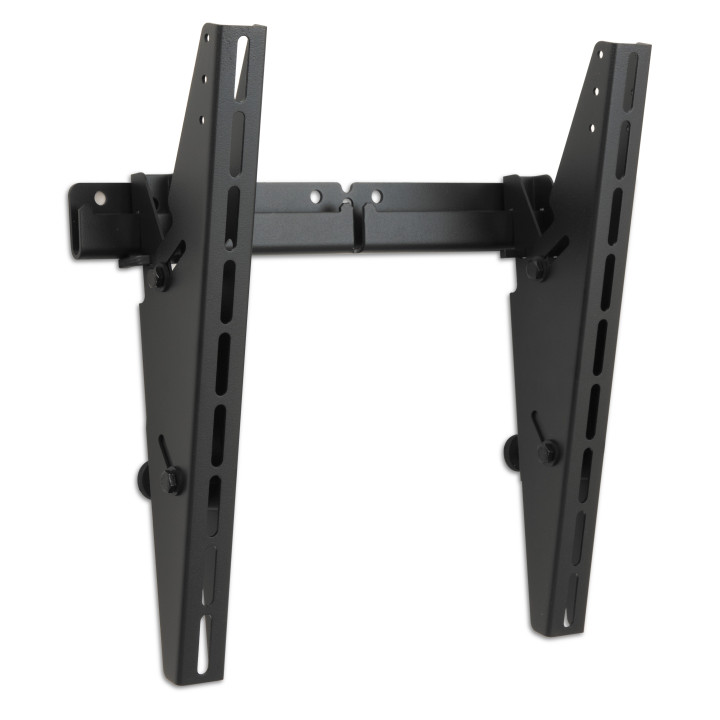

APPLIK 2531 Universal tilting wall mount
Ref. 002531![[img_ambiance_01]](https://www.erard.com/1673-product_main/applik-2531-universal-tilting-wall-mount.jpg "[img_ambiance_01]")
![[schema_1]](https://www.erard.com/1676-product_main/applik-2531-universal-tilting-wall-mount.jpg "[schema_1]")
![[img_ambiance_01]](https://www.erard.com/1673-default_m/applik-2531-universal-tilting-wall-mount.jpg "[img_ambiance_01]")
![[schema_1]](https://www.erard.com/1676-default_m/applik-2531-universal-tilting-wall-mount.jpg "[schema_1]")
APPLIK 2531 Universal tilting wall mount
Ref. 002531
Tilt mount for 30" - 100" screens with maximum VESA 800x400. Supports a maximum screen wieght of 120kgs ! Tilt of +5° /-15°
Tilt mount for 30" - 100" screens with maximum VESA 800x400. Supports a maximum screen wieght of 120kgs ! Tilt of +5° /-15°
Descriptif APPLIK 2531 Universal tilting wall mount
APPLIK mounts meet all installation needs, whatever the layout of the space and the weight or dimensions of your screen (up to 120 kg for universal versions). Sturdy, practical and of high quality, you are guaranteed a secure, reliable installation.
• Wall mount and mounting plate made of steel.
• Black epoxy paint finish.

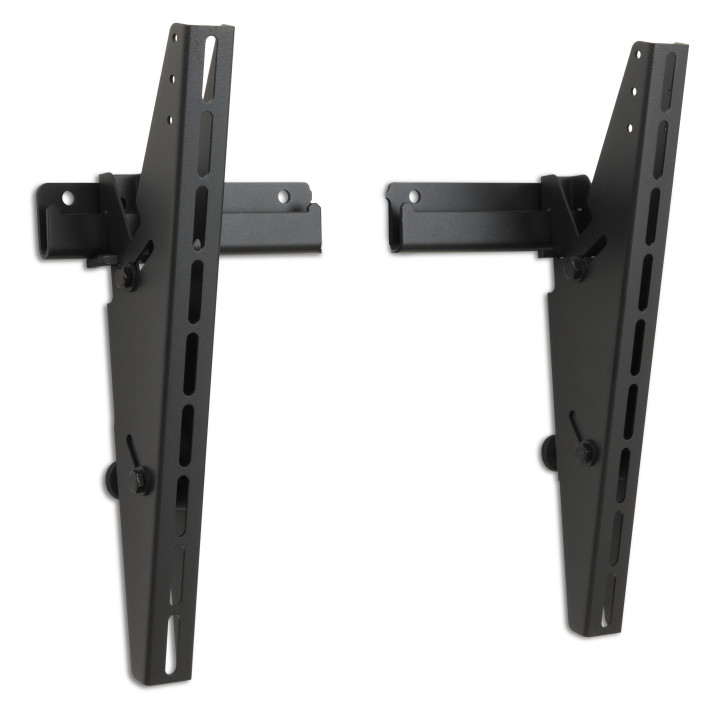

• Breakable wall plate to adapt to all screen sizes.
• 2-pin security system preventing falls.
• Horizontal adjustability: +/- 4°.
H3 downloadable resources
Technical file
- Product features
-
EAN133185280025312
- Technical features
-
RangeApplik
-
VESA compatible75x75
100x100
100x150
100x200
150x100
200x100
200x200
200x300
200x400
300x100
300x200
300x300
300x400
400x100
400x200
400x300
400x400
500x200
500x300
600x200
600x300
600x400
600x500
800x400 -
Supported screen size (inches)30'' et plus
-
Screen back compatibleflat back
-
Wall typeHollow wall (placo)
Solid wall -
Screen typeLCD
OLED -
Screen size min (cm)76.00 cm
-
Screen weight max (kg)120.00 kg
-
Function (mount)Tilting
-
Compatible OLEDYes if the back of the screen is flat
-
Screen thickness max (unit)No
-
Tilt+5/-15°
-
SwivelNo
-
Distance to wall min (mm)81.00 mm
-
ColourBlack
-
FinishEpoxy paint
-
Screw set for wall includedFor full wall material
-
Spirit levelNo
-
Pre-assembled productNo
-
Security system preventing fallsYes
-
Assembly time15 minutes
-
Product weight3.97 kg
-
Product height420.00 mm
-
Product depth81.00 mm
Descriptif
APPLIK 2531 Universal tilting wall mount
APPLIK mounts meet all installation needs, whatever the layout of the space and the weight or dimensions of your screen (up to 120 kg for universal versions). Sturdy, practical and of high quality, you are guaranteed a secure, reliable installation.
• Wall mount and mounting plate made of steel.
• Black epoxy paint finish.
• Breakable wall plate to adapt to all screen sizes.
• 2-pin security system preventing falls.
• Horizontal adjustability: +/- 4°.
Technical file
- Product features
-
EAN133185280025312
- Technical features
-
RangeApplik
-
VESA compatible75x75
100x100
100x150
100x200
150x100
200x100
200x200
200x300
200x400
300x100
300x200
300x300
300x400
400x100
400x200
400x300
400x400
500x200
500x300
600x200
600x300
600x400
600x500
800x400 -
Supported screen size (inches)30'' et plus
-
Screen back compatibleflat back
-
Wall typeHollow wall (placo)
Solid wall -
Screen typeLCD
OLED -
Screen size min (cm)76.00 cm
-
Screen weight max (kg)120.00 kg
-
Function (mount)Tilting
-
Compatible OLEDYes if the back of the screen is flat
-
Screen thickness max (unit)No
-
Tilt+5/-15°
-
SwivelNo
-
Distance to wall min (mm)81.00 mm
-
ColourBlack
-
FinishEpoxy paint
-
Screw set for wall includedFor full wall material
-
Spirit levelNo
-
Pre-assembled productNo
-
Security system preventing fallsYes
-
Assembly time15 minutes
-
Product weight3.97 kg
-
Product height420.00 mm
-
Product depth81.00 mm
