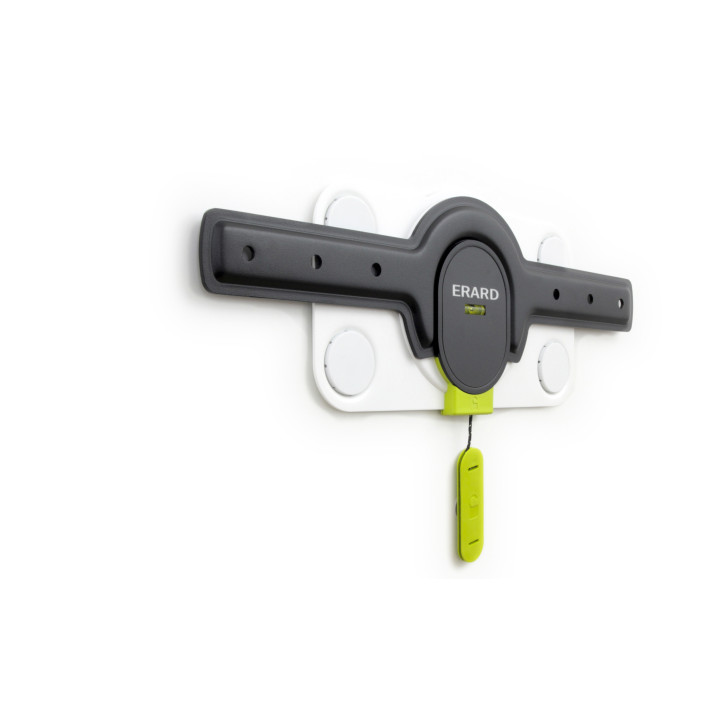

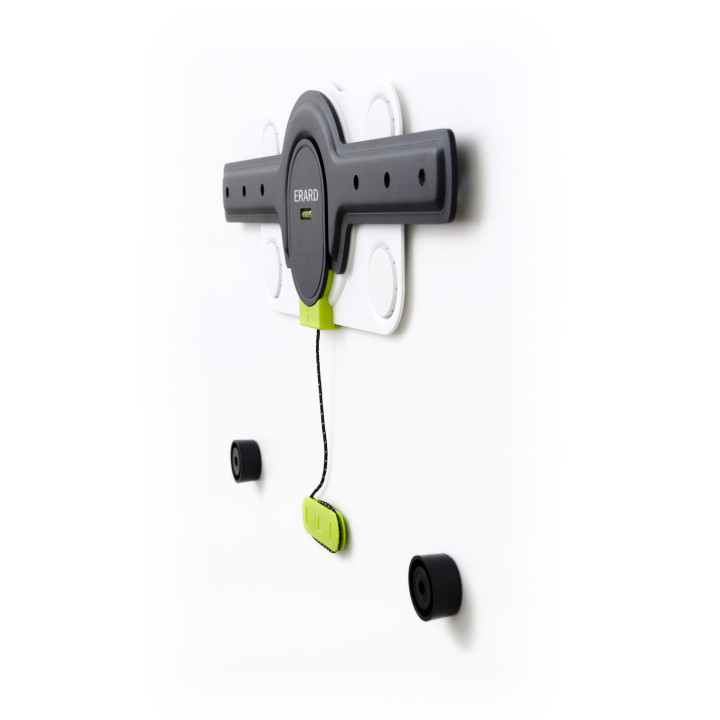

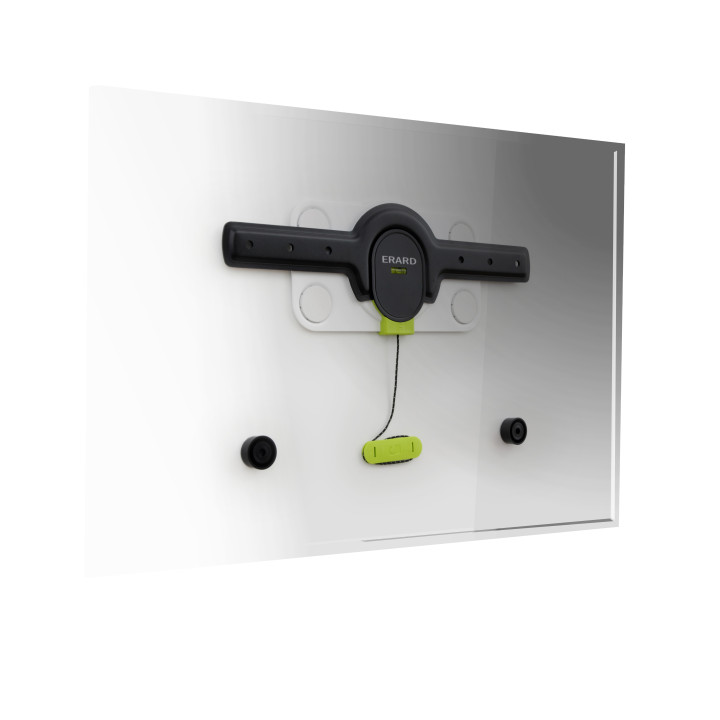

FiXiT400C Fixed wall mount for Curved screens

Ref. 044042
Fixed mount for 30" - 65" screens with a curved or irregular rear panel, VESA 200 to 400, with a maximum screen weight of 60kgs
Fixed mount for 30" - 65" screens with a curved or irregular rear panel, VESA 200 to 400, with a maximum screen weight of 60kgs
En savoir plus

In Stock

Descriptif FiXiT400C Fixed wall mount for Curved screens

Consumers and installers have two main considerations which we took into account when designing our Do iT mounts: easy and safe installation; and being able to mount the screen as close as possible to the wall (like a painting).

FIXiT, TiLTiT and TWiSTiT mounts boast an ingenious mechanism for locking and unlocking the screen, allowing any necessary work to be carried out after installation.

• Wall mount and mounting plate made of steel.

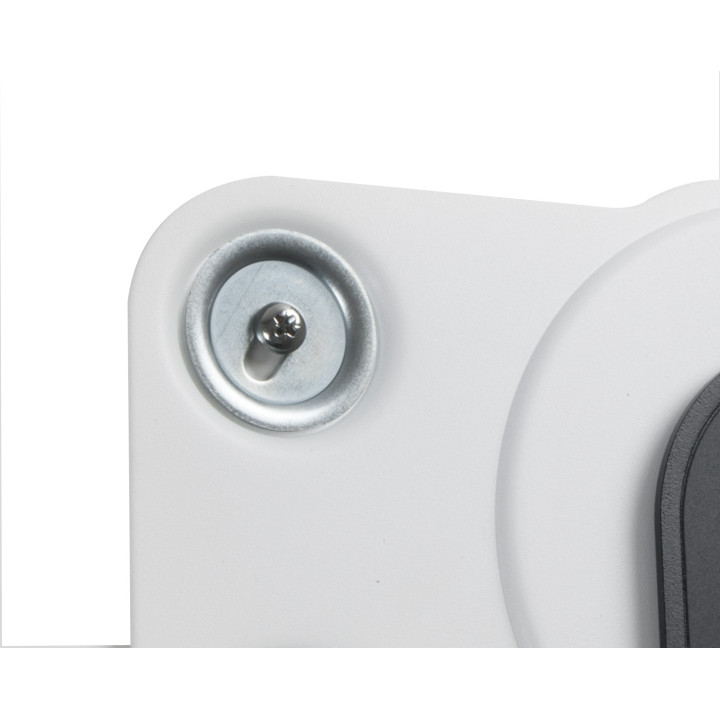

• Eccentric lock washers to correct drilling mistakes.

• Safety system to prevent falls.

• Integrated spirit level.

• Contains a set of spacers (registered design) and screws required to install a screen with curved or irregular back panel (Kit Adapt+).

• Compatible all screen types (LCD, LED, QLED, OLED).

Technical file

  • Product features
  • EAN13
    3185280440429
  • Technical features
  • Range
    Do it
  • VESA compatible
    75x75
    100x100
    100x150
    100x200
    200x100
    200x200
    200x300
    200x400
    300x100
    300x200
    300x300
    300x400
    400x100
    400x200
    400x300
    400x400
  • Supported screen size (inches)
    30''-65''
  • Screen back compatible
    curved back
    flat back
    irregular back
  • Wall type
    Hollow wall (placo)
    Solid wall
  • Screen type
    LCD
    OLED
  • Screen size min (cm)
    76.00 cm
  • Screen size max (cm)
    165.00 cm
  • Screen weight max (kg)
    60.00 kg
  • Function (mount)
    Fixed
  • Compatible OLED
    Yes
  • Screen thickness max (unit)
    No
  • Tilt
    No
  • Swivel
    No
  • Distance to wall max (mm)
    32.00 mm
  • Distance to wall min (mm)
    16.00 mm
  • Colour
    White & black
  • Finish
    Epoxy paint
  • Compatible Curve
    Yes
  • Screw set for wall included
    For full wall material
  • Screw set and spacers for OLED included
    Yes
  • Spirit level
    Integrated
  • Pre-assembled product
    Yes
  • Security system preventing falls
    Yes
  • Assembly time
    10 minutes
  • Product weight
    1.72 kg
  • Product height
    160.00 mm
  • Product depth
    16.00 mm
