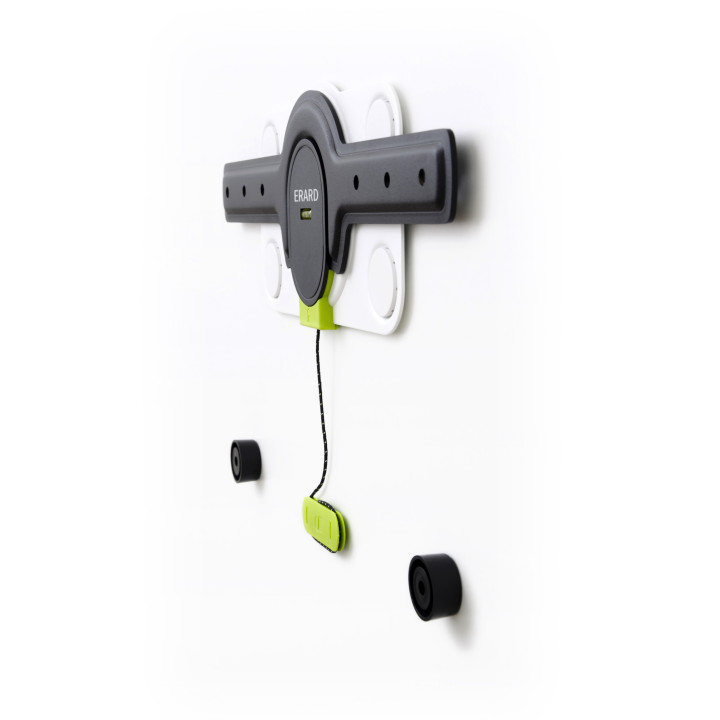

FiXiT600 Fixed wall mount

Ref. 044060
Fixed mount for 40" - 85" screens, VESA 200 to 600, with a maximum screen weight of 70 kgs

Fixed mount for 40" - 85" screens, VESA 200 to 600, with a maximum screen weight of 70 kgs

En savoir plus

In Stock

Descriptif FiXiT600 Fixed wall mount

Consumers and installers have two main considerations which we took into account when designing our Do iT mounts: easy and safe installation; and being able to mount the screen as close as possible to the wall (like a painting).

FIXiT, TiLTiT and TWiSTiT mounts boast an ingenious mechanism for locking and unlocking the screen, allowing any necessary work to be carried out after installation.

• Wall mount and mounting plate made of steel.

• Eccentric lock washers to correct drilling mistakes.

• Safety system to prevent falls.

• Integrated spirit level.

Technical file

  • Product features
  • EAN13
    3185280440603
  • Technical features
  • Range
    Do it
  • VESA compatible
    75x75
    100x100
    100x150
    100x200
    200x100
    200x200
    200x300
    200x400
    300x100
    300x200
    300x300
    300x400
    400x100
    400x200
    400x300
    400x400
    500x200
    500x300
    600x200
    600x300
    600x400
    600x500
  • Supported screen size (inches)
    40''-85''
  • Screen back compatible
    curved back
    flat back
    irregular back
  • Wall type
    Hollow wall (placo)
    Solid wall
  • Screen type
    LCD
    OLED
  • Screen size min (cm)
    101.00 cm
  • Screen size max (cm)
    215.00 cm
  • Screen weight max (kg)
    70.00 kg
  • Function (mount)
    Fixed
  • Compatible OLED
    Yes if the back of the screen is flat
  • Screen thickness max (unit)
    No
  • Tilt
    No
  • Swivel
    No
  • Distance to wall max (mm)
    32.00 mm
  • Distance to wall min (mm)
    16.00 mm
  • Colour
    White & black
  • Finish
    Epoxy paint
  • Screw set for wall included
    For full wall material
  • Spirit level
    Integrated
  • Pre-assembled product
    Yes
  • Security system preventing falls
    Yes
  • Assembly time
    10 minutes
  • Product weight
    1.98 kg
  • Product height
    160.00 mm
  • Product depth
    16.00 mm

Descriptif FiXiT600 Fixed wall mount

Consumers and installers have two main considerations which we took into account when designing our Do iT mounts: easy and safe installation; and being able to mount the screen as close as possible to the wall (like a painting).

FIXiT, TiLTiT and TWiSTiT mounts boast an ingenious mechanism for locking and unlocking the screen, allowing any necessary work to be carried out after installation.

• Wall mount and mounting plate made of steel.

• Eccentric lock washers to correct drilling mistakes.

• Safety system to prevent falls.

• Integrated spirit level.

Technical file

  • Product features
  • EAN13
    3185280440603
  • Technical features
  • Range
    Do it
  • VESA compatible
    75x75
    100x100
    100x150
    100x200
    200x100
    200x200
    200x300
    200x400
    300x100
    300x200
    300x300
    300x400
    400x100
    400x200
    400x300
    400x400
    500x200
    500x300
    600x200
    600x300
    600x400
    600x500
  • Supported screen size (inches)
    40''-85''
  • Screen back compatible
    curved back
    flat back
    irregular back
  • Wall type
    Hollow wall (placo)
    Solid wall
  • Screen type
    LCD
    OLED
  • Screen size min (cm)
    101.00 cm
  • Screen size max (cm)
    215.00 cm
  • Screen weight max (kg)
    70.00 kg
  • Function (mount)
    Fixed
  • Compatible OLED
    Yes if the back of the screen is flat
  • Screen thickness max (unit)
    No
  • Tilt
    No
  • Swivel
    No
  • Distance to wall max (mm)
    32.00 mm
  • Distance to wall min (mm)
    16.00 mm
  • Colour
    White & black
  • Finish
    Epoxy paint
  • Screw set for wall included
    For full wall material
  • Spirit level
    Integrated
  • Pre-assembled product
    Yes
  • Security system preventing falls
    Yes
  • Assembly time
    10 minutes
  • Product weight
    1.98 kg
  • Product height
    160.00 mm
  • Product depth
    16.00 mm
