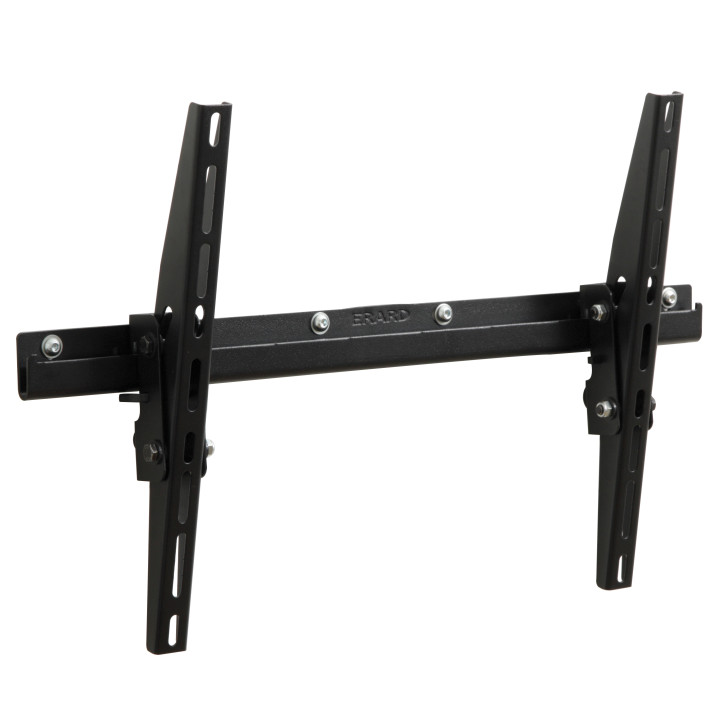

APPLIK 045201 Tilting wall mount

H3 downloadable resources

Technical file

• Product features
• EAN13
  3185280452019
• Technical features
• Range
  Applik
• VESA compatible
  200x100
  200x200
  200x300
  200x400
  300x100
  300x200
  300x300
  300x400
  400x100
  400x200
  400x300
  400x400
  500x200
  500x300
  600x200
  600x300
  600x400
  600x500
• Supported screen size (inches)
  40''-85''
• Screen back compatible
  flat back
• Wall type
  Hollow wall (placo)
  Solid wall
• Screen type
  LCD
  OLED
• Screen size min (cm)
  101.00 cm
• Screen size max (cm)
  215.00 cm
• Screen weight max (kg)
  70.00 kg
• Function (mount)
  Tilting
• Compatible OLED
  Yes if the back of the screen is flat
• Screen thickness max (unit)
  No

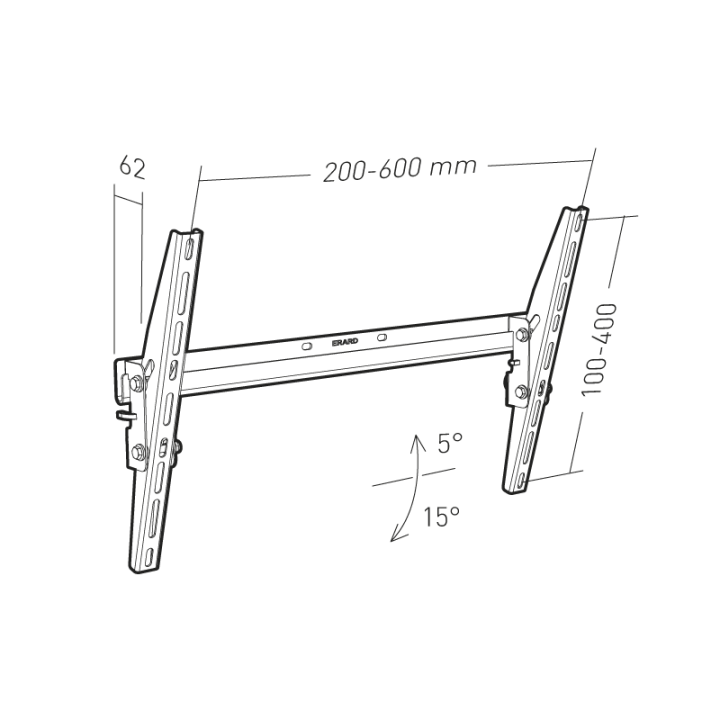

• Tilt
  +5/-15°
• Swivel
  No
• Distance to wall min (mm)
  62.00 mm
• Colour
  Black
• Finish
  Epoxy paint
• Screw set for wall included
  For full wall material
• Spirit level
  No
• Pre-assembled product
  No
• Security system preventing falls
  Yes
• Assembly time
  15 minutes
• Product weight
  3.72 kg
• Product height
  420.00 mm
• Product depth
  62.00 mm
