EXOXXLTW3 Tilt and swivel wall mount

Ref. 048390

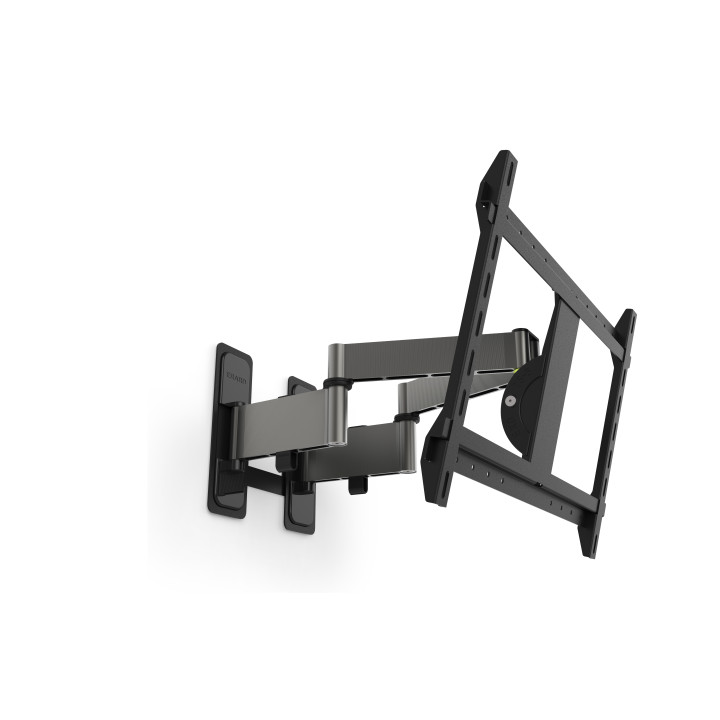

  • Packshot 01

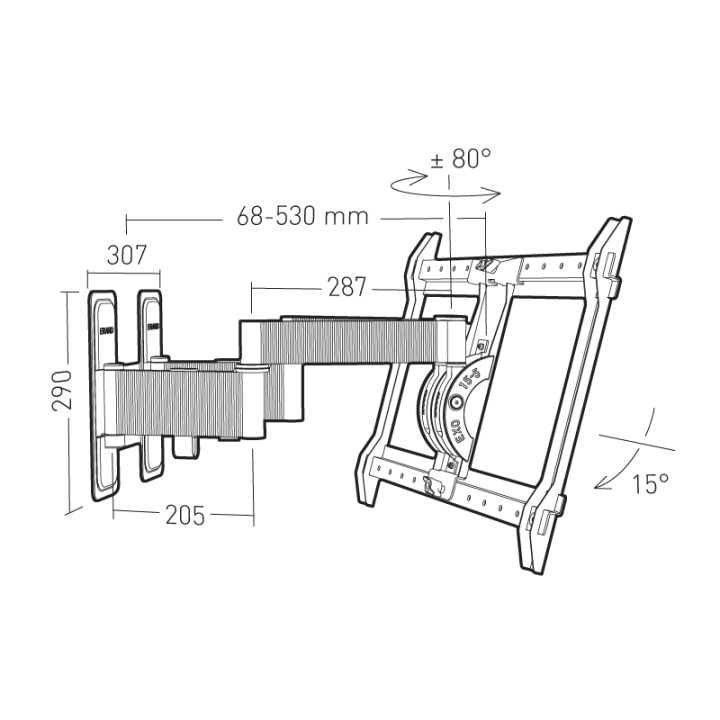

  • [schema_1]

EXOXXLTW3 Tilt and swivel wall mount

Ref. 048390

Tilt and swivel  wall mount with 530 mm offset for 40''-100'' screens, VESA 200x100 to 600x400 with a maximum screen weight of 70 kgs. Dual arm bracket for security and peace of mind.

Tilt and swivel  wall mount with 530 mm offset for 40''-100'' screens, VESA 200x100 to 600x400 with a maximum screen weight of 70 kgs. Dual arm bracket for security and peace of mind.

En savoir plus

In Stock

Descriptif EXOXXLTW3 Tilt and swivel wall mount

With titanium colour anodized aluminium arms that fit perfectly with the design of televisions, EXO is also really easy to install and simple to use. There is no need to force it - the hinges on the arms are flexible and can be moved into exactly the right position.



• Texturized anodized aluminium arm, titanium coloured.

• Screen and wall mount made of steel, black epoxy paint finish.

• Magnetic cover for wall mount.

• Delivered with a kit of spacers and screws required for an installation of a  screen with curved or irregular rear panel (Adapt+ kit).

• Compatible with all screen types (LCD, LED, QLED, OLED).

• Delivered pre-assembled.

Technical file

  • Product features
  • EAN13
    3185280483907
  • Technical features
  • Range
    Exo
  • VESA compatible
    200x200
    200x300
    300x100
    300x200
    300x300
    300x400
    400x100
    400x200
    400x300
    400x400
    400x600
    500x200
    500x300
    600x200
    600x300
    600x400
    600x500
  • Supported screen size (inches)
    40''-100''
  • Screen back compatible
    curved back
    flat back
    irregular back
  • Wall type
    Solid wall
  • Screen type
    LCD
    OLED
  • Screen size min (cm)
    101.00 cm
  • Screen size max (cm)
    254.00 cm
  • Screen weight max (kg)
    70.00 kg
  • Function (mount)
    Tilt & swivel
  • Compatible OLED
    Yes
  • Screen thickness max (unit)
    No
  • Tilt
    +/-15°
  • Swivel
    +/-80°
  • Distance to wall max (mm)
    530.00 mm
  • Distance to wall min (mm)
    68.00 mm
  • Colour
    Titanium
  • Finish
    Anodized texturized
  • Compatible Curve
    Yes
  • Cable management
    Yes
  • Screw set for wall included
    For full wall material
  • Screw set and spacers for OLED included
    Yes
  • Micro adjustment system for mount horizontality (patented)
    Yes
  • Spirit level
    No
  • Screen horizontality adjustment
    Yes
  • Pre-assembled product
    Yes
  • Security system preventing falls
    Yes
  • Assembly time
    20 minutes
  • Product weight
    10.94 kg
  • Product height
    400.00 mm
  • Product depth
    530.00 mm

Descriptif EXOXXLTW3 Tilt and swivel wall mount

With titanium colour anodized aluminium arms that fit perfectly with the design of televisions, EXO is also really easy to install and simple to use. There is no need to force it - the hinges on the arms are flexible and can be moved into exactly the right position.



• Texturized anodized aluminium arm, titanium coloured.

• Screen and wall mount made of steel, black epoxy paint finish.

• Magnetic cover for wall mount.

• Delivered with a kit of spacers and screws required for an installation of a  screen with curved or irregular rear panel (Adapt+ kit).

• Compatible with all screen types (LCD, LED, QLED, OLED).

• Delivered pre-assembled.

Technical file

  • Product features
  • EAN13
    3185280483907
  • Technical features
  • Range
    Exo
  • VESA compatible
    200x200
    200x300
    300x100
    300x200
    300x300
    300x400
    400x100
    400x200
    400x300
    400x400
    400x600
    500x200
    500x300
    600x200
    600x300
    600x400
    600x500
  • Supported screen size (inches)
    40''-100''
  • Screen back compatible
    curved back
    flat back
    irregular back
  • Wall type
    Solid wall
  • Screen type
    LCD
    OLED
  • Screen size min (cm)
    101.00 cm
  • Screen size max (cm)
    254.00 cm
  • Screen weight max (kg)
    70.00 kg
  • Function (mount)
    Tilt & swivel
  • Compatible OLED
    Yes
  • Screen thickness max (unit)
    No
  • Tilt
    +/-15°
  • Swivel
    +/-80°
  • Distance to wall max (mm)
    530.00 mm
  • Distance to wall min (mm)
    68.00 mm
  • Colour
    Titanium
  • Finish
    Anodized texturized
  • Compatible Curve
    Yes
  • Cable management
    Yes
  • Screw set for wall included
    For full wall material
  • Screw set and spacers for OLED included
    Yes
  • Micro adjustment system for mount horizontality (patented)
    Yes
  • Spirit level
    No
  • Screen horizontality adjustment
    Yes
  • Pre-assembled product
    Yes
  • Security system preventing falls
    Yes
  • Assembly time
    20 minutes
  • Product weight
    10.94 kg
  • Product height
    400.00 mm
  • Product depth
    530.00 mm
