EXO400OLEDTW3 Wall mount for OLED screens

Ref. 048345
  • Packshot 01
  • Packshot 02
  • [schema_1]
  • [img_detail_01]

EXO400OLEDTW3 Wall mount for OLED screens

Ref. 048345

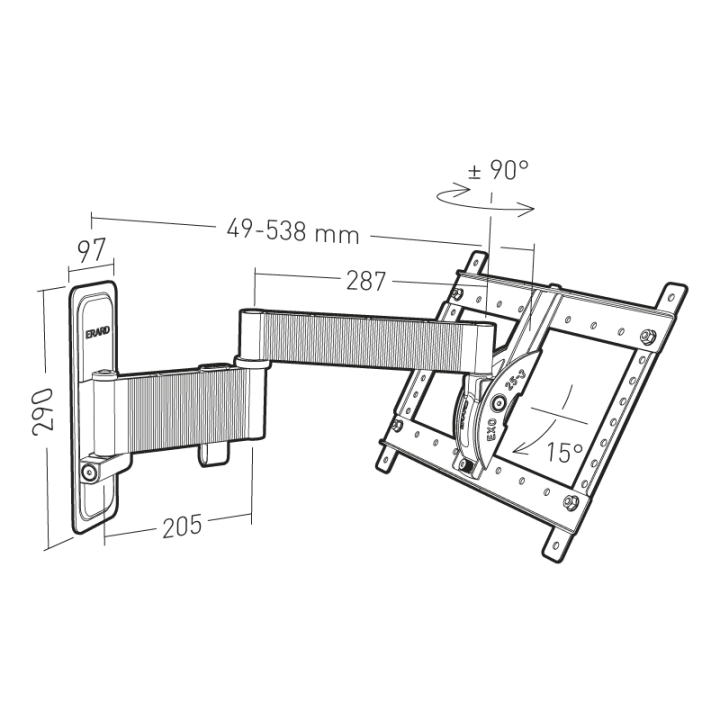

Tilt and swivel wall mount with an offset of between 49 and 538mm, for OLED flat screen TVs 30'' to 65'', VESA 200 to 400, maximum screen weight of 25 kgs

Tilt and swivel wall mount with an offset of between 49 and 538mm, for OLED flat screen TVs 30'' to 65'', VESA 200 to 400, maximum screen weight of 25 kgs

En savoir plus

In Stock

Descriptif EXO400OLEDTW3 Wall mount for OLED screens

With titanium colour anodized aluminium arms that fit perfectly with the design of televisions, EXO is also really easy to install and simple to use. There is no need to force it - the hinges on the arms are flexible and can be moved into exactly the right position.



• Tilt and swivel mount with 538 mm offset

• Especially designed for OLED screens – 30’’- 65’’ VESA 200 - 400

• Texturized anodized aluminium arm; titanium coloured

• Screen and wall mount made of steel; black epoxy paint finish

• Magnetic covers for wall mount.

• Delivered pre-assembled

Technical file

  • Product features
  • EAN13
    3185280483457
  • Technical features
  • Range
    Exo
  • VESA compatible
    200x100
    200x200
    200x300
    300x200
    300x300
    400x200
    400x300
  • Supported screen size (inches)
    30''-65''
  • Screen back compatible
    curved back
    flat back
    irregular back
  • Wall type
    Solid wall
  • Screen type
    LCD
    OLED
  • Screen size min (cm)
    76.00 cm
  • Screen size max (cm)
    165.00 cm
  • Screen weight max (kg)
    25.00 kg
  • Function (mount)
    Tilt & swivel
  • Compatible OLED
    Yes
  • Tilt
    +0/-15°
  • Swivel
    +/-90°
  • Distance to wall max (mm)
    539.00 mm
  • Distance to wall min (mm)
    49.00 mm
  • Colour
    Titanium
  • Finish
    Anodized texturized
  • Compatible Curve
    Yes
  • Cable management
    Yes
  • Screw set for wall included
    For full wall material
  • Screw set and spacers for OLED included
    Yes
  • Micro adjustment system for mount horizontality (patented)
    Yes
  • Spirit level
    No
  • Screen horizontality adjustment
    Yes
  • Pre-assembled product
    Yes
  • Security system preventing falls
    Yes
  • Assembly time
    15 minutes
  • Product weight
    5.20 kg
  • Product height
    420.00 mm
  • Product depth
    538.00 mm

Descriptif EXO400OLEDTW3 Wall mount for OLED screens

With titanium colour anodized aluminium arms that fit perfectly with the design of televisions, EXO is also really easy to install and simple to use. There is no need to force it - the hinges on the arms are flexible and can be moved into exactly the right position.



• Tilt and swivel mount with 538 mm offset

• Especially designed for OLED screens – 30’’- 65’’ VESA 200 - 400

• Texturized anodized aluminium arm; titanium coloured

• Screen and wall mount made of steel; black epoxy paint finish

• Magnetic covers for wall mount.

• Delivered pre-assembled

Technical file

  • Product features
  • EAN13
    3185280483457
  • Technical features
  • Range
    Exo
  • VESA compatible
    200x100
    200x200
    200x300
    300x200
    300x300
    400x200
    400x300
  • Supported screen size (inches)
    30''-65''
  • Screen back compatible
    curved back
    flat back
    irregular back
  • Wall type
    Solid wall
  • Screen type
    LCD
    OLED
  • Screen size min (cm)
    76.00 cm
  • Screen size max (cm)
    165.00 cm
  • Screen weight max (kg)
    25.00 kg
  • Function (mount)
    Tilt & swivel
  • Compatible OLED
    Yes
  • Tilt
    +0/-15°
  • Swivel
    +/-90°
  • Distance to wall max (mm)
    539.00 mm
  • Distance to wall min (mm)
    49.00 mm
  • Colour
    Titanium
  • Finish
    Anodized texturized
  • Compatible Curve
    Yes
  • Cable management
    Yes
  • Screw set for wall included
    For full wall material
  • Screw set and spacers for OLED included
    Yes
  • Micro adjustment system for mount horizontality (patented)
    Yes
  • Spirit level
    No
  • Screen horizontality adjustment
    Yes
  • Pre-assembled product
    Yes
  • Security system preventing falls
    Yes
  • Assembly time
    15 minutes
  • Product weight
    5.20 kg
  • Product height
    420.00 mm
  • Product depth
    538.00 mm
