INTEGRA600T Tilting wall mount
Ref. 046260![[img_ambiance_01]](https://www.erard.com/1820-product_main/integra600t-tilting-wall-mount.jpg "[img_ambiance_01]")
![[schema_1]](https://www.erard.com/1825-product_main/integra600t-tilting-wall-mount.jpg "[schema_1]")
![[img_detail_01]](https://www.erard.com/1826-product_main/integra600t-tilting-wall-mount.jpg "[img_detail_01]")
![[img_detail_02]](https://www.erard.com/1827-product_main/integra600t-tilting-wall-mount.jpg "[img_detail_02]")
![[img_detail_03]](https://www.erard.com/1828-product_main/integra600t-tilting-wall-mount.jpg "[img_detail_03]")
![[img_detail_04]](https://www.erard.com/1829-product_main/integra600t-tilting-wall-mount.jpg "[img_detail_04]")
![[img_detail_05]](https://www.erard.com/1830-product_main/integra600t-tilting-wall-mount.jpg "[img_detail_05]")
![[img_ambiance_01]](https://www.erard.com/1820-default_m/integra600t-tilting-wall-mount.jpg "[img_ambiance_01]")
![[schema_1]](https://www.erard.com/1825-default_m/integra600t-tilting-wall-mount.jpg "[schema_1]")
![[img_detail_01]](https://www.erard.com/1826-default_m/integra600t-tilting-wall-mount.jpg "[img_detail_01]")
![[img_detail_02]](https://www.erard.com/1827-default_m/integra600t-tilting-wall-mount.jpg "[img_detail_02]")
![[img_detail_03]](https://www.erard.com/1828-default_m/integra600t-tilting-wall-mount.jpg "[img_detail_03]")
![[img_detail_04]](https://www.erard.com/1829-default_m/integra600t-tilting-wall-mount.jpg "[img_detail_04]")
![[img_detail_05]](https://www.erard.com/1830-default_m/integra600t-tilting-wall-mount.jpg "[img_detail_05]")

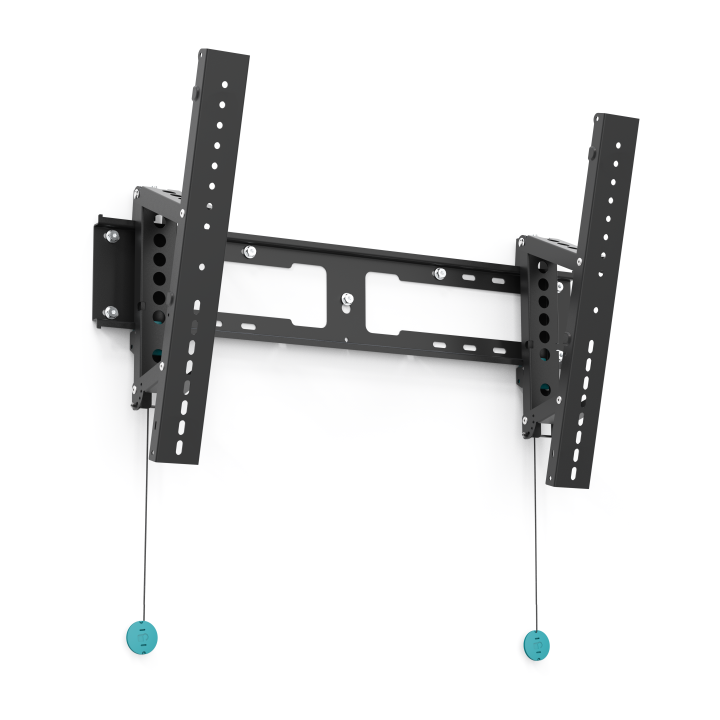

INTEGRA600T Tilting wall mount
Ref. 046260
Mount for screens from 40" to 100", VESA max 600x400. Tilts up to -15° Maintenance position, for an easy access to the rear of the screen. Maximum screen weight supported : 120kgs !
Mount for screens from 40" to 100", VESA max 600x400. Tilts up to -15° Maintenance position, for an easy access to the rear of the screen. Maximum screen weight supported : 120kgs !
Descriptif INTEGRA600T Tilting wall mount
• Security system to prevent falls

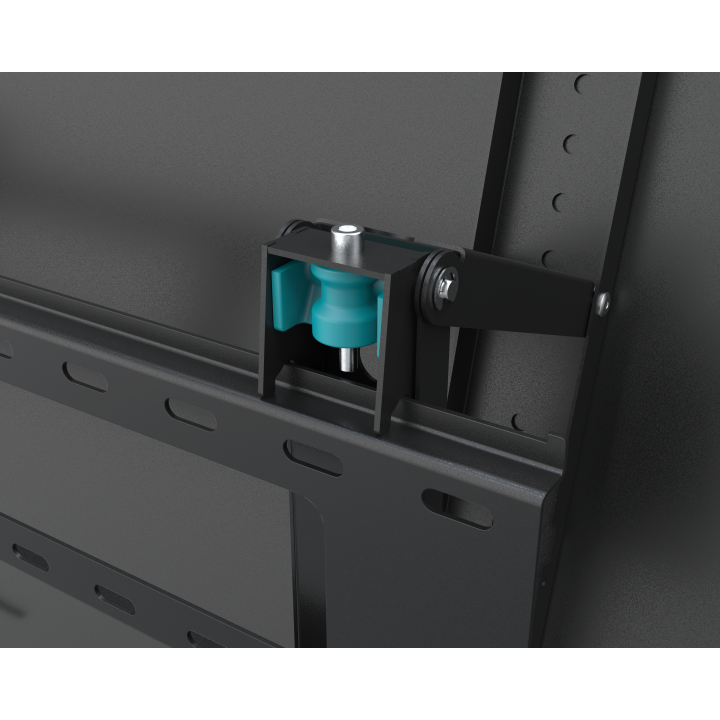

• Simple solution to lock/ unlock the screen (patented design)

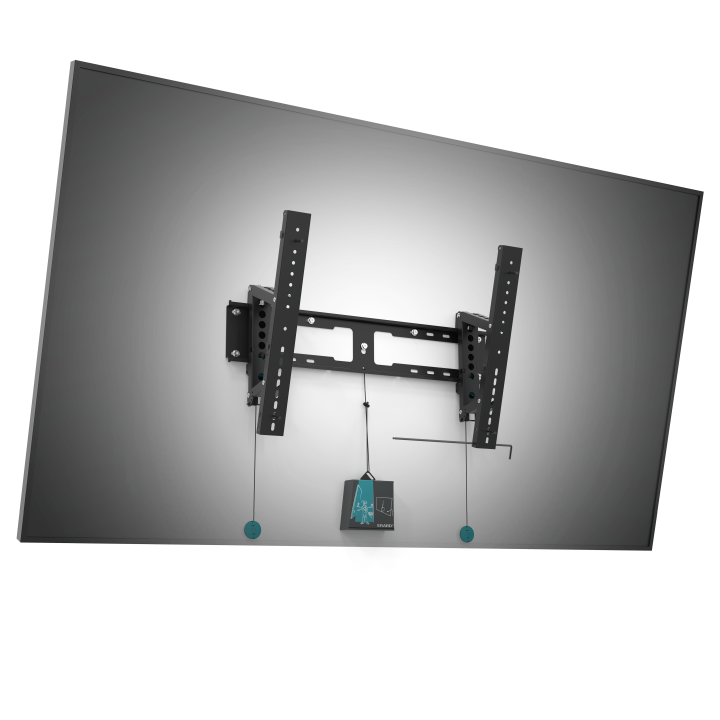

• Maintenance position, for an easy access to the rear of the screen
• Horizontal and vertical adjustment of screen possible after installation
• The screen position can be adjusted both sideways (+/- 75 mm) and in height (+/- 50 mm)
• 7 fixing points to the wall
• Compatible with all types of screens (LCD, LED, QLED, OLED)
H3 downloadable resources
Technical file
- Product features
-
EAN133185280462605
- Technical features
-
RangeINTEGRA
-
VESA compatible100x100
100x150
150x100
200x100
200x200
200x300
200x400
300x100
300x200
300x300
300x400
400x100
400x200
400x300
400x400
500x200
500x300
600x200
600x300
600x400 -
Supported screen size (inches)40''-100''
-
Screen back compatiblecurved back
flat back
irregular back -
Wall typeSolid wall
-
Screen typeLCD
OLED -
Screen size min (cm)100.00 cm
-
Screen size max (cm)254.00 cm
-
Screen weight max (kg)120.00 kg
-
Function (mount)Tilting
-
Compatible OLEDYes
-
Screen thickness max (unit)No
-

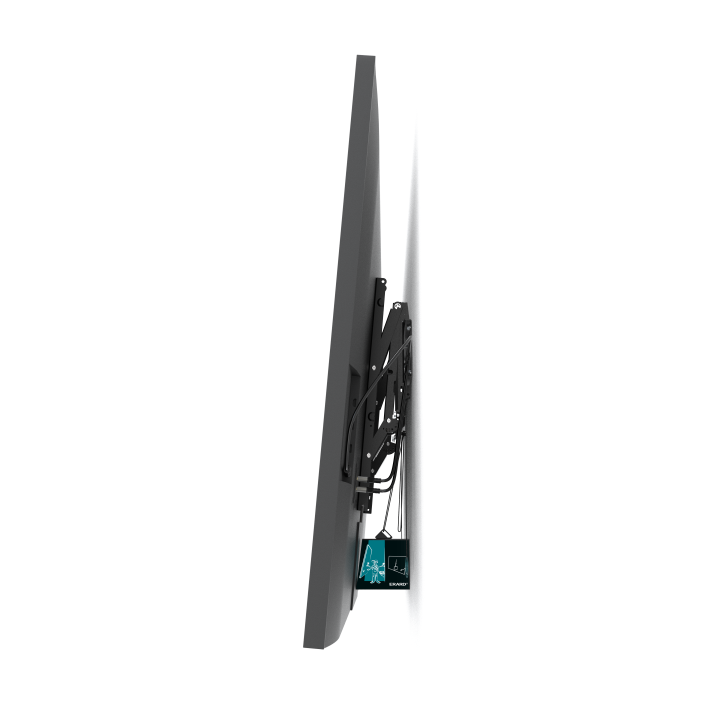

Tilt+0/-15°
-
SwivelNo
-
Distance to wall max (mm)80.00 mm
-
Distance to wall min (mm)45.00 mm
-
ColourBlack
-
FinishEpoxy paint
-
Compatible drywallYes
-
Screw set for wall includedFor full wall material
-
Spirit levelProvided
-
Screen horizontality adjustmentYes
-
Pre-assembled productYes
-
Security system preventing fallsYes
-
Assembly time15 minutes
-
Product weight4.75 kg
-
Product height510.00 mm
-
Product depth46.00 mm
Descriptif
INTEGRA600T Tilting wall mount
• Security system to prevent falls
• Simple solution to lock/ unlock the screen (patented design)
• Maintenance position, for an easy access to the rear of the screen
• Horizontal and vertical adjustment of screen possible after installation
• The screen position can be adjusted both sideways (+/- 75 mm) and in height (+/- 50 mm)
• 7 fixing points to the wall
• Compatible with all types of screens (LCD, LED, QLED, OLED)
Technical file
- Product features
-
EAN133185280462605
- Technical features
-
RangeINTEGRA
-
VESA compatible100x100
100x150
150x100
200x100
200x200
200x300
200x400
300x100
300x200
300x300
300x400
400x100
400x200
400x300
400x400
500x200
500x300
600x200
600x300
600x400 -
Supported screen size (inches)40''-100''
-
Screen back compatiblecurved back
flat back
irregular back -
Wall typeSolid wall
-
Screen typeLCD
OLED -
Screen size min (cm)100.00 cm
-
Screen size max (cm)254.00 cm
-
Screen weight max (kg)120.00 kg
-
Function (mount)Tilting
-
Compatible OLEDYes
-
Screen thickness max (unit)No
-
Tilt+0/-15°
-
SwivelNo
-
Distance to wall max (mm)80.00 mm
-
Distance to wall min (mm)45.00 mm
-
ColourBlack
-
FinishEpoxy paint
-
Compatible drywallYes
-
Screw set for wall includedFor full wall material
-
Spirit levelProvided
-
Screen horizontality adjustmentYes
-
Pre-assembled productYes
-
Security system preventing fallsYes
-
Assembly time15 minutes
-
Product weight4.75 kg
-
Product height510.00 mm
-
Product depth46.00 mm
